Simulation Flow

At a high level, the Simulation component iterates over time and coordinates the interaction between the Controller and the EnergySystem (and thus its containing components). The EnergySystem applies control actions, advances the simulation, and handles building of the resulting system state. The controller is responsible only for determining the controllable power contribution. Fixed production and consumption are represented separately through ContributesToPowerBalanceMixin and are combined with the controller's applied power after each simulation step to obtain the total system power balance.

Conceptually, each simulation step consists of three stages:

  1. State Building: A new State of the EnergySystem and all its components is build. The State contains (1) arbitrary information of components published through PublishesStateMixin, (2) uncontrolled power contributions provided through ContributesToPowerBalanceMixin and (3) information about the current date time and time step.
  2. Control: Based on the State, the controller computes an action. The action is dispatched by the EnergySystem to all ControllableMixin components. These return the power they were actually able to provide as a result (requested and provided power can differ, e.g. an empty battery cannot provide power).
  3. Results: The simulation combines the uncontrolled power contributions from the State with the applied powers from the controllable components to determine the total system power balance. The GridBuilder supplies or absorbs any remaining imbalance, and the results of the time step are recorded.

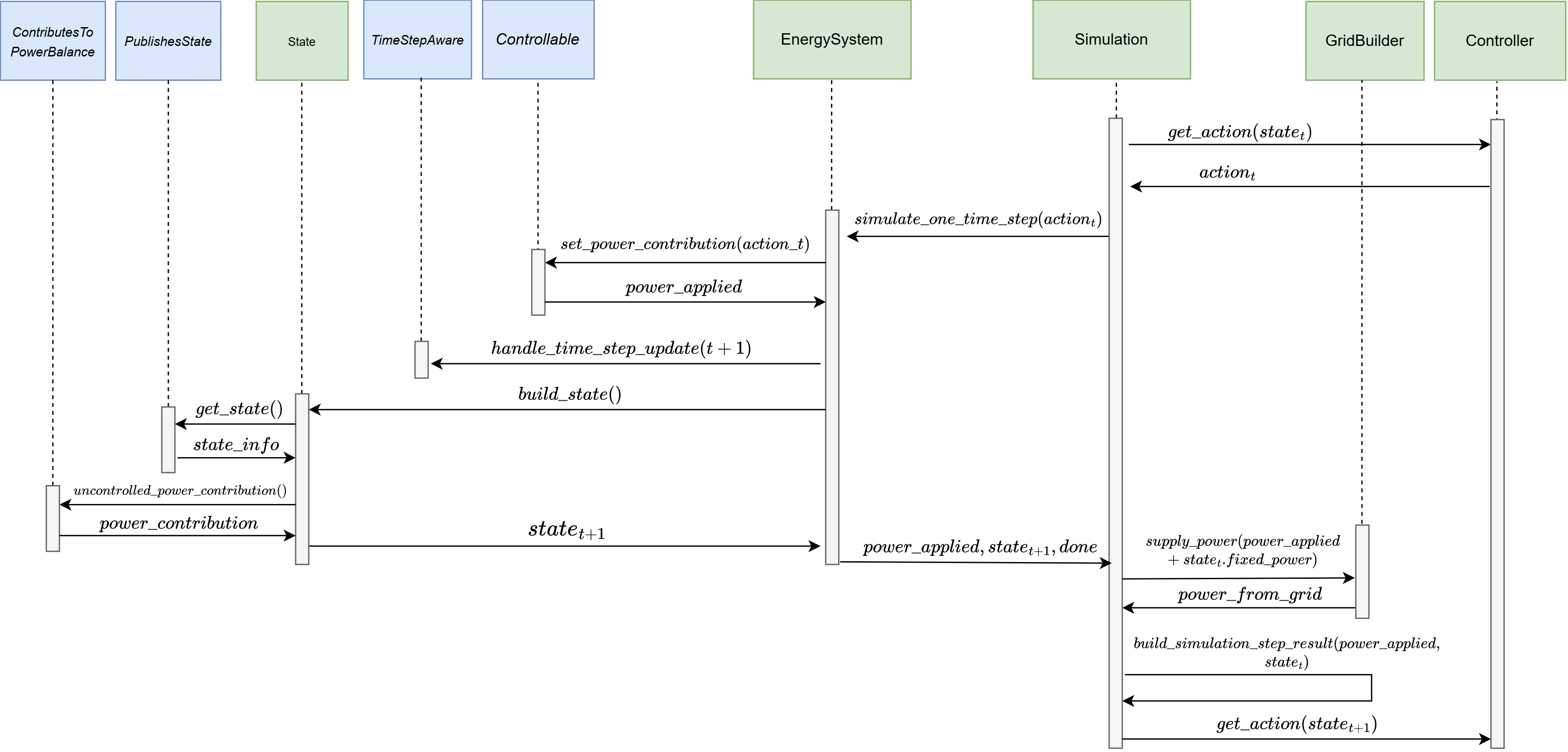

The diagram below shows the detailed control flow of a single simulation step.

MDP

The blue boxes in the diagram represent the available mixins (see Extending NRGISE for more details about mixins). The mixins indicate where a component participates in the simulation flow. For example, a component implementing ControllableMixin receives a control action, while a component implementing ContributesToPowerBalanceMixin or PublishesStateMixin is queried when the system state is built.

In more detail, the flow is as follows:

  1. Simulation provides the current state state_t to controller.get_action(state_t).
  2. The controller returns action_t (plus optional additional info).
  3. Simulation triggers the simulation of one time step in the EnergySystem.
  4. Inside EnergySystem, the action is forwarded to all components implementing ControllableMixin. Each of these components returns the power that was actually applied (power_applied). This value may differ from the requested power, for example due to power limits or state-of-charge constraints.
  5. The internal time step is advanced to t+1. As part of this step, all components implementing TimeStepAwareMixin are notified via handle_time_step_update(...).
  6. The next state state_t+1 is built. During this step, all components implementing PublishesStateMixin and ContributesToPowerBalanceMixin are queried for their contribution to the State.
  7. simulate_one_time_step(...) returns power_applied, state_t+1, and done back to Simulation.
  8. Back in Simulation, grid balancing is performed via the GridBuilder.
  9. The results of this simulation step are recorded. This includes the state, the requested power, the applied power, the power supplied by the GridBuilder, and any additional information returned by the controller.
  10. The loop starts again.
